Dual Band WiFi Antenna 6dBi 2.4G / 5GHz Outdoor Mini Omni Antenna N-Male Connector for WiFi 6 5.8G N Type Male

HZOF-2451-6 Dual Band Omni-Directional Wi-Fi Antenna The HZOF-2451-6 is a high-performance, cost-effective dual-band Wi-Fi antenna designed for outdoor applications. With a weatherproof casing and N-male connector, it is ideal for use on boats, RVs, or other outdoor environments. This antenna supports both 2.4 GHz and 5 GHz frequencies, offering exceptional signal coverage and reliability. Note: This is an antenna only and must be connected to a compatible Wi-Fi receiver or transmitter. It does not function as a standalone Wi-Fi radio. To utilize dual-band functionality, ensure your Wi-Fi device supports both 2.4 GHz and 5 GHz frequencies. Mounting bracket is not included. Electrical Specifications Parameter Specification Frequency Range 2400-2500 / 5150-5850 MHz Gain 5 / 6 dBi Polarization Vertical Vertical Half-power Beamwidth 360° Horizontal Half-power Beamwidth 38° / 28° VSWR ≤1.5 Input Impedance 50 Ω Maximum Input Power 50 W Lightning Protection DC Ground Mechanical Specifications Parameter Specification Input Connector Type N Male (or custom upon request) Dimensions Φ20 * 280 mm Antenna Weight 0.15 kg Radome Material Fiberglass Radome Color Gray Operating Temperature -40℃ to 60℃ Rated Wind Velocity 60 m/s

• ​Dual-Band Support: Operates on 2.4 GHz (2400-2500 MHz) and 5 GHz (5150-5850 MHz) frequencies.
• N-Male Connector: Compatible with a wide range of outdoor Wi-Fi devices (Wireless Access Point)
• ​High Gain: 5 dBi gain at 2.4 GHz and 6 dBi gain at 5 GHz for extended signal range.
• ​Omni-Directional: Provides 360° horizontal coverage for seamless connectivity.

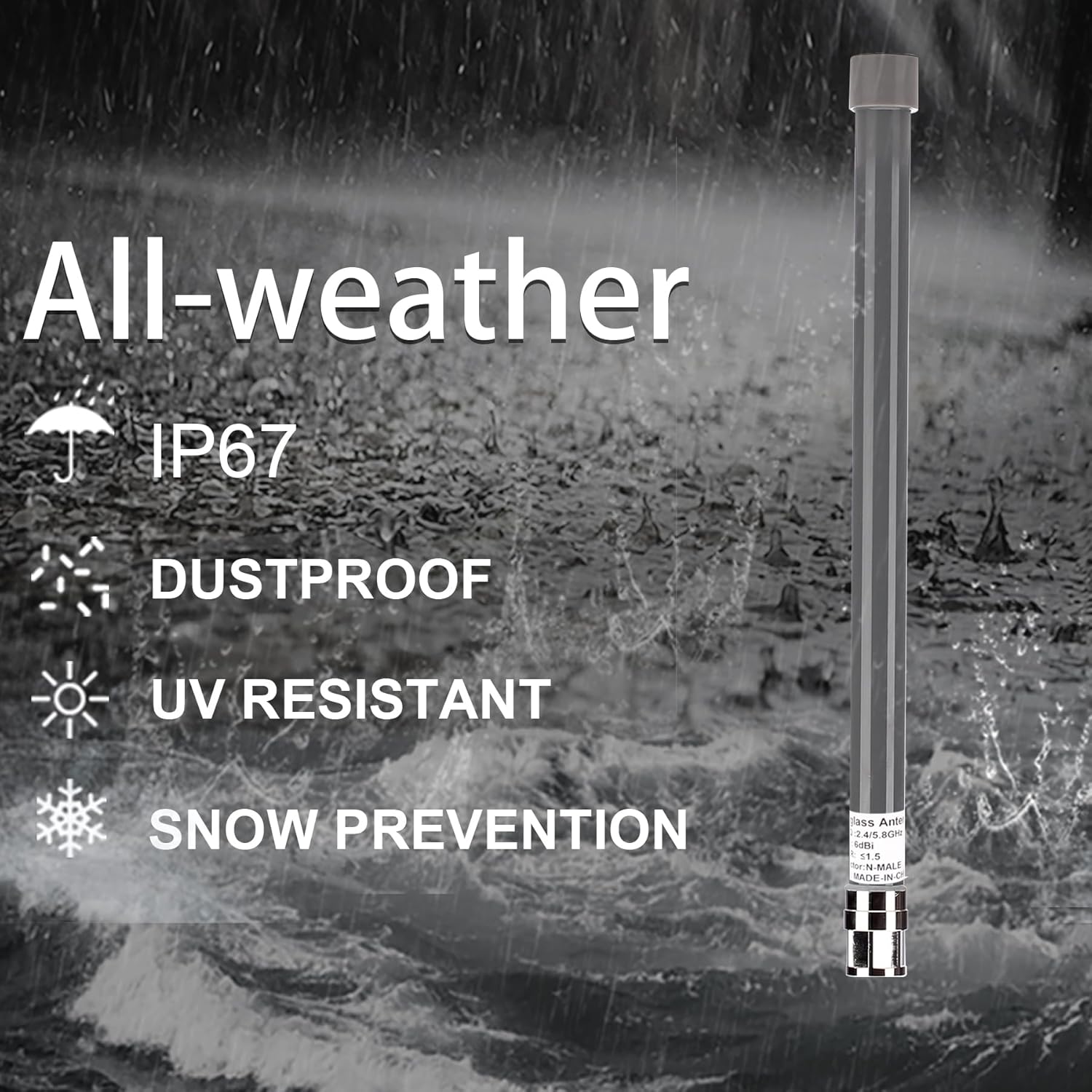

• Weatherproof Design: Features a durable fiberglass radome with UV resistance, built to withstand harsh outdoor conditions, including rain, wind, and prolonged sun exposure.
