Aramox Motor Brushed Speed Controller, 24V 500W Motor Brushed Controller Box with Throttle Grip for Electric Scooter E-Bike
4.6 (140 items)
Limited Time SaleUS$18.53 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 214552272 | Release Date | 2026/04/12 | List Price | US$12.35 | Model Number | 214552272 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

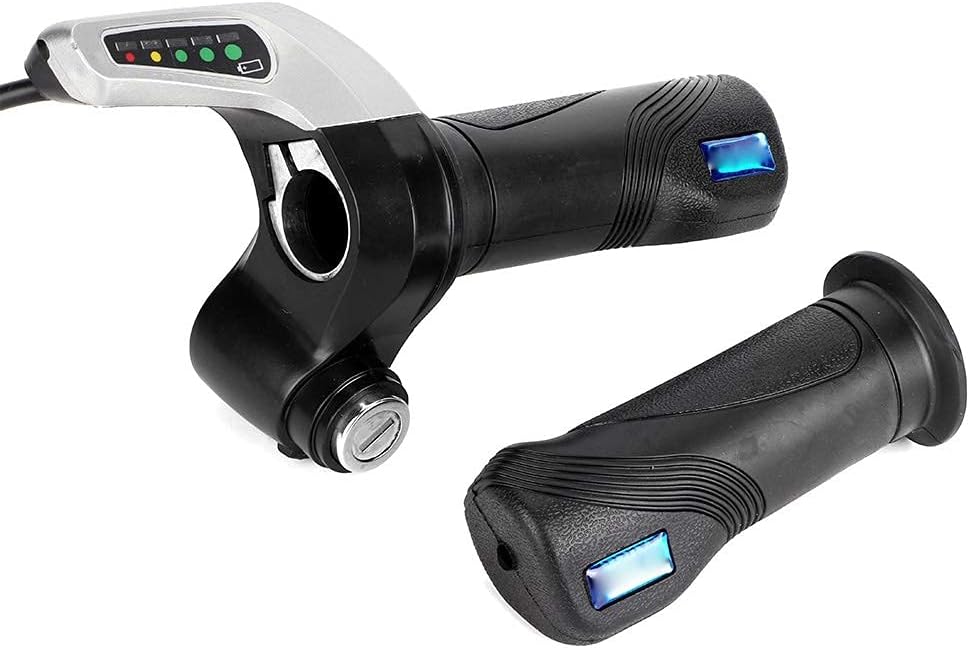

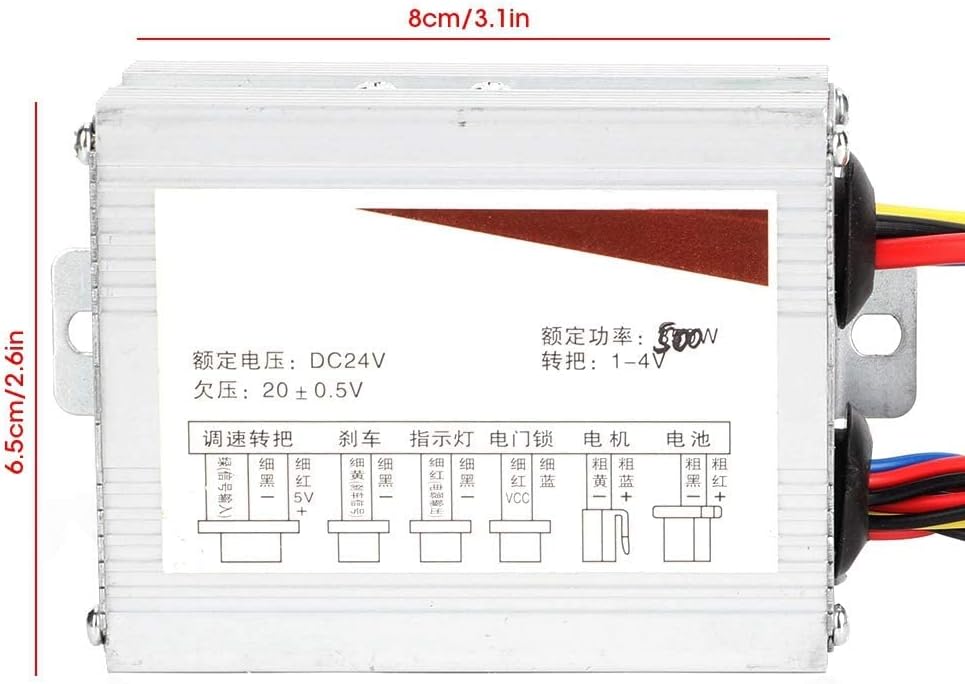

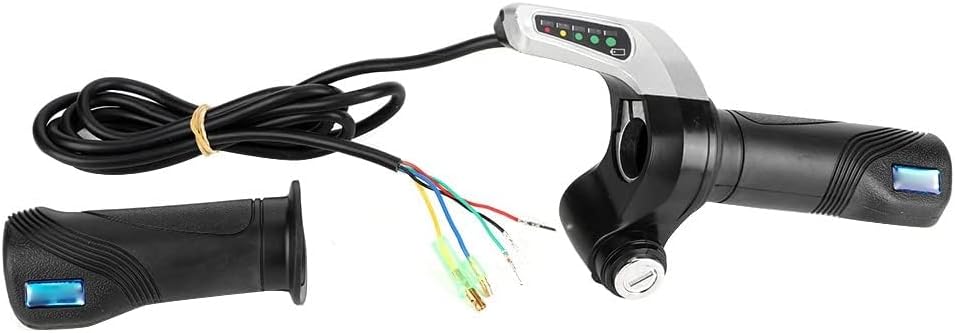

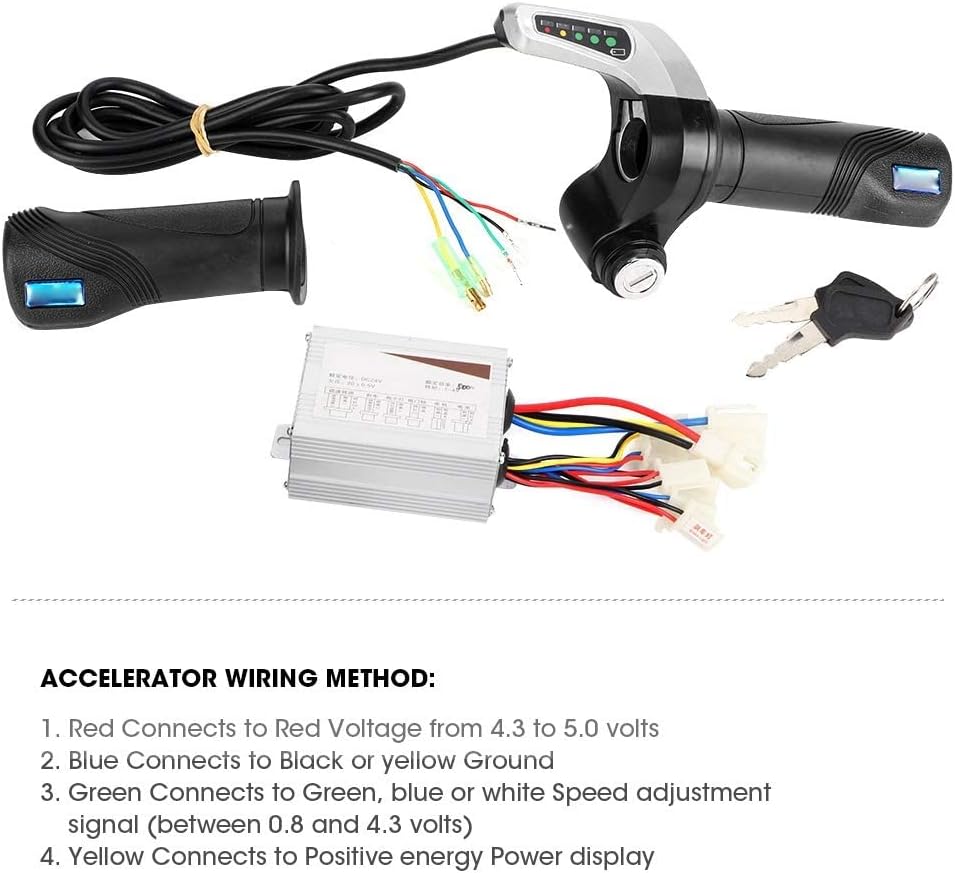

Specification: Condition: Brand New Item Type: Brushed Controller Material: ABS Color: As Pictures Shown Brushed Controller: Size: (length x width) 8 cm x 6.5 cm / 3.1 inches x 2.6 inches Brushed motor controller for electric and scooter Rated Voltage: DC 24 v Current Limit: 28A Rated Power: 500 w Matching Motor: Brushed DC motor Under-Voltage : 20 V Accelerator Size: (length x diameter) 10 cm x 2 cm / 3.9inx 0.8in Revolving throttle accelerator for electric with power display , 5Led battery indicator. The throttle operates with voltage: DC5V Speed Adjustment : 0.8 V - 4.3 V Power Display Voltage: 24 V DC Power Display: Normal: 23 V up, 3 Green LED Half: 23 V - 20 V, Yellow LED Vacuum: 20 V or less, Red LED Rotation Angle: 0 ° - 70 ° Working Temperature: -20℃ - + 50℃ Fits to 7/8 inch (22.2mm) standard handle bars Cable length is approximately 59 inches (1.5m) Quantity: 2pcs (1 throttle grip and 1 normal grip (matching thumb grip ) Package List: 1 x Brushed Controller 2 x Throttle Grip 1 x Power Line 2 x Key Cable Controller Interface Definition: Battery: coarse black (negative power) / coarse red (positive power) Motor: coarse yellow (Negative motor) / coarse blue (Positive motor) Power switch: Red thin (VCC) / Blue thin Indicator: Red thin (indicator power output) / Black Slim (negative indicator) Accelerator Wiring Method: 1. Red Connects to Red Voltage from 4.3 to 5.0 volts 2. Blue Connects to Black or yellow Ground 3. Green Connects to Green, blue or white Speed adjustment (between 0.8 and 4.3 volts) 4. Yellow Connects to Positive energy Power display

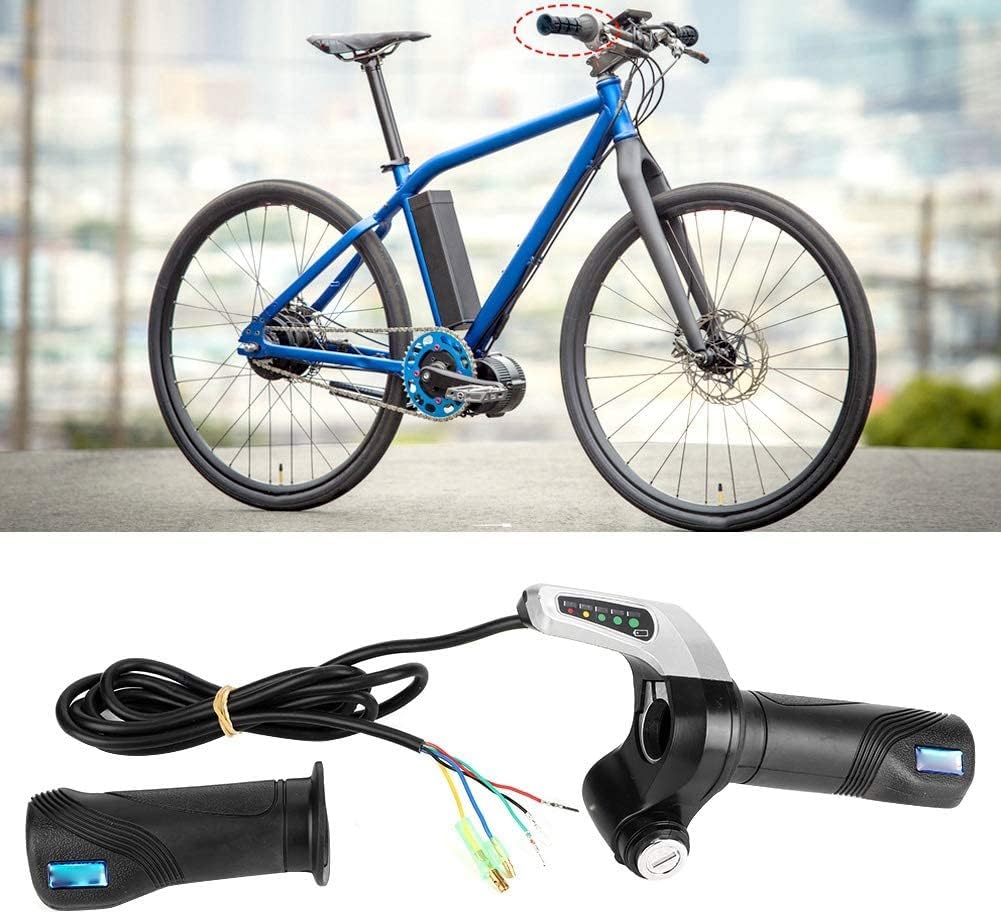

- Application: Suitable for electric , electric tricycles, electric scooters.
- Anti-slip Design: Good grip, better and more comfortable handling, anti-slip.
- High Performance: Professional manufacturing, high performance. It can provide speed and sensitive braking and direction change control.
- Effective : The wire and interface are , ensuring low failure rate in long-term use. The controller can the internal circuit, facilitate heat dissipation, and avoid thermal overload.
- Easy To Install: There is an instruction label on the interface, easy to install, no complicated , convenient and to use.
| Size | Standard |
|---|---|
| Color | popular |
| Bike Type | Electric Bike |
| Brand Name | Aramox |
| Model Name | Motor Brushed Speed Controller |
| Brake Style | Disc |
| Item Weight | 0.1 Kilograms |
| Manufacturer | Aramox |
| Power Source | Electric motor |
| Warranty Type | Limited |
| Wheel Material | Plastic |
| Suspension Type | Rigid |
| Additional Features | Anti-slip Design, High Performance, Effective Cooling |
| Frame Material Type | Plastic |
| Included Components | 1 x Brushed Controller, 2 x Throttle Grip, 1 x Power Line, 2 x Controller, 1 x Remote Control, 1 x Wiring Harness |
| Electric Assist Type | Throttle |
| Is Assembly Required | Yes |
| Age Range Description | Youth, Teen |
| Bicycle Drivetrain Type | CHAIN |
| Derailleur Configuration | Rear |
| Bicycle Gear Shifter Type | Twist Grip |
| Specific Uses For Product | Electric Scooter, Electric Bike |
